 Product Name:CF Product parameters:
|
Material |
|
|
Ball |
Chromium Steel GCr15,heat treated,hard chrome plated |
|
Body |
Low carbon steel,heat treated,nickle plated |
|
Liner |
PTFE available,add "T" as suffix |
|
FEMALE Right thread |
FEMALE Left Hand Thread |

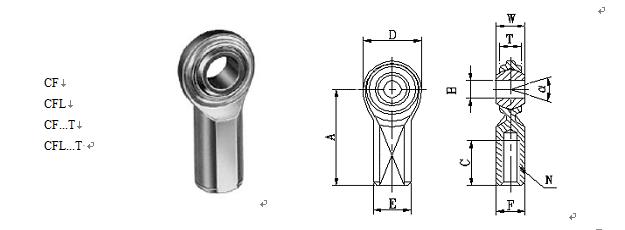

B
DIA. |
D
DIA. |
W
WIDTH |
T
WIDTH |
BALL
DIA. |
A
LGTH |
N
THD. |
C
LGTH |
E
DIA. |
F
FLAT |
MIS
ANGLE |
ULTIMATE STATIC RADIAL LOAD
Lbs |
Approx. WT.
Lbs |
|
+.0025 -.0005 |
+.010 -.010 |
+.000 -.005 |
+.005 -.005 |
REF. |
+.015 -.015 |
UNF3A |
+.062 -.031 |
+.010 -.010 |
+.010 -.010 |
REF. |
|
CF3 |
CFL3 |
.1900 |
.625 |
.312 |
.234 |
.437 |
1.250 |
10- 32 |
.500 |
.406 |
.312 |
17 |
2100 |
0.04 |
|
CF3T |
CFL3T |
|
|
CF4 |
CFL4 |
.2500 |
.750 |
.375 |
.250 |
.500 |
1.562 |
1/4-28 |
.687 |
.468 |
.375 |
21 |
3250 |
0.05 |
|
CF4T |
CFL4T |
|
|
|
CF5 |
CFL5 |
.3125 |
.875 |
.437 |
.312 |
.625 |
1.875 |
5/16-24 |
.687 |
.500 |
.437 |
17 |
3934 |
0.08 |
|
CF5T |
CFL5T |
|
|
|
CF6 |
CFL6 |
.3750 |
1.000 |
.500 |
.359 |
.719 |
1.938 |
3/8-24 |
.812 |
.687 |
.562 |
19 |
5100 |
0.13 |
|
CF6T |
CFL6T |
|
CF7 |
CFL7 |
.4375 |
1.13 |
.562 |
.406 |
.812 |
2.125 |
7/16-20 |
.937 |
.750 |
.625 |
18 |
6420 |
0.18 |
|
CF7T |
CFL7T |
|
|
CF8 |
CFL8 |
.5000 |
1.31 |
.625 |
.453 |
.937 |
2.438 |
1/2-20 |
1.062 |
.875 |
.750 |
17 |
9100 |
0.29 |
|
CF8T |
CFL8T |
|
CF10 |
CFL10 |
.6250 |
1.500 |
.750 |
.484 |
1.125 |
2.625 |
5/8-18 |
1.375 |
1.000 |
.875 |
22 |
9800 |
0.43 |
|
CF10T |
CFL10T |
|
CF12 |
CFL12 |
.7500 |
1.750 |
.875 |
.593 |
1.312 |
2.875 |
3/4-16 |
1.560 |
1.125 |
1.000 |
18 |
14250 |
0.65 |
|
|
|
|
|
|
|
|
