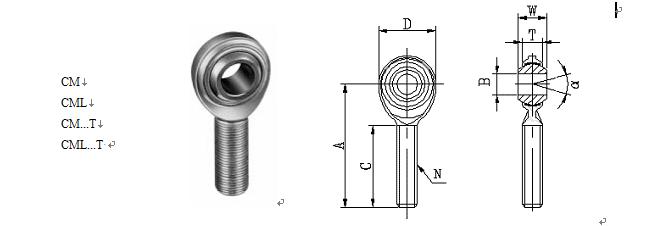

 Product Name:CM Product parameters:
|
Material |
|
|
Ball |
Chromium Steel GCr15,heat treated,hard chrome plated |
|
Body |
Low carbon steel,heat treated,nickle Plated |
|
Liner |
PTFE available,add "T" as suffix |
|
MALE Right thread |
MALE Left Hand Thread |
B
DIA. |
D
DIA. |
W
WIDTH |
T
WIDTH |
BALL
DIA. |
A
LGTH |
N
THD. |
C
LGTH |
MIS ANGLE |
ULTIMATE STATIC RADIAL LOAD
( Lbs) |
Approx. WT.
Lbs |
|
+.0025 -.0005 |
+.010 -.010 |
+.000 -.005 |
+.005 -.005 |
REF. |
+.015 -.015 |
UNF3A |
+.062 -.031 |
REF. |
|
CM3 |
CML3 |
.1900 |
.625 |
.312 |
.234 |
.437 |
1.250 |
10-32 |
.750 |
17 |
902 |
0.03 |
|
CM3T |
CML3T |
|
CM4 |
CML4 |
.2500 |
.750 |
.375 |
.250 |
.500 |
1.562 |
1/4- 28 |
1.000 |
21 |
1809 |
0.04 |
|
CM4T |
CML4T |
|
|
CM5 |
CML5 |
.3125 |
.875 |
.437 |
.312 |
.625 |
1.875 |
5/16-24 |
1.250 |
17 |
2984 |
0.07 |
|
CM5T |
CML5T |
|
CM6 |
CML6 |
.3750 |
1.000 |
.500 |
.359 |
.719 |
1.938 |
3/8-24 |
1.250 |
19 |
4244 |
0.11 |
|
CM6T |
CML6T |
|
CM7 |
CML7 |
.4375 |
1.125 |
.562 |
.406 |
.812 |
2.125 |
7/16-20 |
1.375 |
18 |
5312 |
0.15 |
|
CM7T |
CML7T |
|
|
CM8 |
CML8 |
.5000 |
1.312 |
.625 |
.453 |
.937 |
2.438 |
1/2-20 |
1.500 |
17 |
7211 |
0.24 |
|
CM8T |
CML8T |
|
|
CM10 |
CML10 |
.6250 |
1.500 |
.750 |
.484 |
1.125 |
2.625 |
5/8-18 |
1.625 |
22 |
8403 |
0.36 |
|
CM10T |
CML10T |
|
|
|
|
|
CM12 |
CML12 |
.7500 |
1.750 |
.875 |
.593 |
1.312 |
2.875 |
3/4-16 |
1.750 |
18 |
12312 |
0.57 |
|
CM12T |
CML12T |
|
|
|
|
|
|
