Material
Ball	Chromium Steel GCr15,heat treated,hard chrome plated
Liner	PTFE
Outer ring	Chromium Steel GCr15,or mid-carbon steel,or altermative materials available
Body	Low carbon steel,heat treated,nickle plated

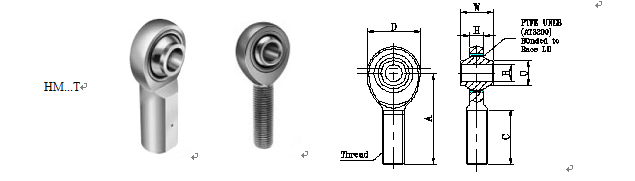

Bearing Model		Metric Size									Misalign Angle	Ultimate Radial StaticLoad Capacity Lbs	Weight Approx Brg. Wt.Lbs
Right thread	Left Hand Thread	B  +.0000 -.0005	W +.000 -.005	T +.005 -.005	A +.010 -.010	D +.010 -.010	Ball Dia. Ret.	C +.031 -.031	Therad UNJF-3A	Shoulder Dia.
HM-4T	HML-4T	.2500	.593	.266	1.938	1.025	.593	1.187	3/8-24	.390	23	10.789	0.12
HM-5T	HML-5T	.3125	.813	.355	2.125	1.150	.781	1.281	7/16-20	.512	22	11.781	0.16
HM-6T	HML-6T	.3750	.813	.355	2.125	1.150	.781	1.281	7/16-20	.512	22	11.781	0.16
HM-7T	HML-7T	.4375	.875	.355	2.438	1.337	.875	1.468	1/2-20	.618	21	17.105	0.24
HM-8T	HML-8T	.5000	.937	.411	2.625	1.525	1.000	1.562	5/8-18	.730	19	23.720	0.39
HM-10T	HML-10T	.6250	1.200	.577	2.875	1.775	1.250	1.687	3/4-16	.856	19	32.067	0.60
HM-12T	HML-12T	.7500	1.280	.630	3.375	2.025	1.375	2.000	7/8-14	.970	18	38.660	0.89
Bearing Model		Metric Size									Misalign Angle	Ultimate Radial StaticLoad Capacity Lbs	Weight Approx Brg.Lbs
Right thread	Left Hand Thread	B  +.0000 -.0005	W +.000 -.005	T +.005 -.005	A +.010 -.010	D +.010 -.010	Ball Dia. Ret.	C +.031 -.031	Therad UNJF-3A	Shoulder Dia.
HM- 4T	HML-     4T	6.350	15.06	6.76	49.225	26.035	15.062	30.15	3/8-24	9.906	23	10.789	0.12
HM-5T	HML-5T	7.938	20.65	9.02	53.975	29.210	19.837	46.25	7/16-      20	13.005	22	11.781	0.16
HM-6T	HML-6T	9.525	20.65	9.02	53.975	29.210	19.837	46.25	7/16-20	13.005	22	11.781	0.16
HM-7T	HML-7T	11.112	22.23	9.02	61.925	33.960	22.225	37.29	1/2-20	15.697	21	17.105	0.24
HM-8T	HML-8T	12.700	23.80	10.44	66.675	38.735	25.400	39.67	5/8-18	18.542	19	23.720	0.39
HM-10T	HML-10T	15.875	30.48	14.66	73.025	45.085	31.750	42.85	3/4-16	21.742	19	32.067	0.60
HM-12T	HML-12T	19.050	32.51	16.00	85.725	51.435	34.925	50.80	7/8-14	24.638	18	38.660	0.89
