 Product Name:SSW Product parameters:
|
MODEL
NO. |
NUMBER
OF BALL |

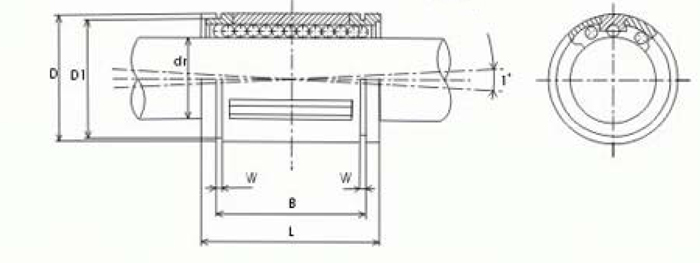

MAIN DIMENSIONS |
CLEARANCE |
BASIC LOAD
RATING |
|
dr |
D |
L |
B |
D1 |
W |
H7/h6 |
C(kgf) |
Co(kgf) |
|
SSW4 |
3 |
1/4¡å
6.35 |
0.5¡å12.7 |
0.75¡å
19.05 |
0.515¡å
13.081 |
0.4687¡å
11.905 |
0.039¡å
0.991 |
+0.011~+0.042 |
27 |
36 |
|
SSW6 |
4 |
3/8¡å
9.525 |
0.625¡å
15.875 |
0.875¡å
22.225 |
0.703¡å
17.856 |
0.588¡å
14.935 |
0.039¡å
0.991 |
+0.011~+0.042 |
43 |
54 |
|
SSW8 |
4 |
1/2¡å
12.7 |
0.875¡å
22.225 |
1.25¡å
31.75 |
1.032¡å
26.213 |
0.8209¡å
20.85 |
0.0459¡å
1.166 |
+0.011~+0.042 |
104 |
132 |
|
SSW10 |
4 |
5/8¡å
15.875 |
1.125¡å
28.575 |
1.5¡å
38.1 |
1.112¡å
28.245 |
1.059¡å
26.899 |
0.0559¡å
1.42 |
+0.011~+0.042 |
182 |
228 |
|
SSW12 |
4 |
3/4¡å
19.05 |
1.25¡å
31.75 |
1.625¡å
41.275 |
1.272¡å
32.309 |
1.176¡å
29.87 |
0.0559¡å
1.42 |
0.012~+0.050 |
213 |
268 |
|
SSW16 |
5 |
1¡å25.4 |
1.5625¡å
39.688 |
2.25¡å
57.15 |
1.886¡å
47.904 |
1.4687¡å
37.305 |
0.0679¡å
1.275 |
0.012~+0.050 |
386 |
481 |
|
SSW20 |
5 |
1-1/4¡å
31.75 |
2¡å50.8 |
2.625¡å
66.675 |
2.011¡å
51.079 |
1.8859¡å
47.9 |
0.0679¡å
1.275 |
0.012~+0.050 |
558 |
695 |
|
SSW24 |
6 |
1-1/2¡å
38.1 |
2.375¡å
60.325 |
3¡å76.2 |
2.422¡å
61.519 |
2.2389¡å
56.868 |
0.0859¡å
2.182 |
0.013~+0.055 |
672 |
840 |
|
SSW32 |
6 |
2¡å
50.8 |
3¡å
76.2 |
4¡å
101.6 |
3.206¡å
81.432 |
2.8379¡å
72.083 |
0.1029¡å
2.614 |
0.013~+0.055 |
1102 |
1377 |
|
|
|
|
|
