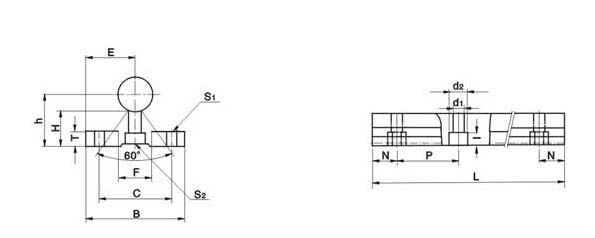

 Product Name:Block TBR-shaft Product parameters:
|
Support Designation |
Shaft Dimensions |
Dimensions(mm) |
Weight(kg/m) |
|
E
|
h
|
B
|
H |
T |
F |
C |
S1 |
S2
d1¡Ád2¡Á¦É |
|
TBR16 |
¦µ16 |
25 |
22.14 |
50 |
14.96 |
6 |
18.71 |
37 |
¦µ5.5 |
5.5¡Á9.5¡Á5.4 |
1.10 |
|
TBR20 |
¦µ20 |
27.5 |
29.01 |
55 |
19.37 |
8 |
18.96 |
40 |
¦µ5.5 |
5.5¡Á9.5¡Á5.4 |
1.80 |
|
TBR25 |
¦µ25 |
32.5 |
31.97 |
65 |
20.14 |
10 |
20 |
45 |
¦µ6.6 |
6.6¡Á11¡Á6.5 |
2.05 |
|
TBR30 |
¦µ30 |
37.5 |
36.52 |
75 |
22.45 |
12 |
22.96 |
55 |
¦µ6.6 |
6.6¡Á11¡Á6.5 |
2.80 |
Support Rail Stand Lengths and Dimensions
|
Designation |
SBR 16 |
SBR20 |
SBR25 |
SBR30 |
|
Standard Length L |
190 |
340 |
250 |
450 |
|
240 |
640 |
450 |
850 |
|
640 |
940 |
850 |
1250 |
|
940 |
1240 |
1250 |
1450 |
|
N |
20 |
20 |
25 |
25 |
|
P |
150 |
150 |
200 |
200 |
|
Max.Length |
4000 |
4000 |
4000 |
4000 |
|
|
|
|
|
