Product Name:POSB
Product parameters:
|

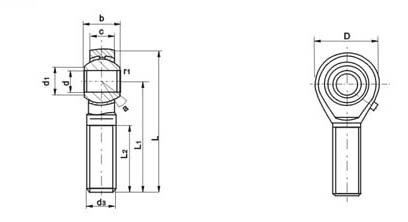

Bearings
nunber |
Dimensions£¨mm£© |
a¡ã |
Sphericai diameter (mm) |
|
|
d |
Thereads
(ks) |
D |
C |
b |
d1 |
L |
L1 |
L2 |
r1 |
|
POSB3 |
3/16 |
3/16¡Á32 |
0.6692
17 |
0.2362
6 |
0.3150
8 |
0.3031
7.7 |
1.6732
45.5 |
1.3385
34 |
0.7874
20 |
0.0197
0.5 |
13 |
0.4375
11.1125 |
380 |
|
POSB4 |
1/4 |
1/4¡Á28 |
0.7283
18.5 |
0.2677
6.75 |
0.3543
9 |
0.3543
9 |
1.8110
46 |
0.14469
36.73 |
0.8661
22 |
0.0197
0.5 |
13 |
0.5000
12.70 |
500 |
|
POSB5 |
5/16 |
5/16¡Á24 |
0.9055
23 |
0.3543
9 |
0.4724
12 |
0.4094
10.4 |
2.1259
54 |
1.6732
42.5 |
0.9843
25 |
0.0197
0.5 |
13 |
0.6250
15.875 |
700 |
|
POSB6 |
3/8 |
3/8¡Á24 |
1.0629
27 |
0.4133
10.5 |
0.5512
14 |
0.5078
12.9 |
2.4409
62 |
1.9094
48.5 |
1.1417
29 |
0.0197
0.5 |
13 |
0.7500
19.05 |
1100 |
|
POSB8 |
1/2 |
1/2¡Á20 |
1.2598
32 |
0.4724
12 |
0.6299
16 |
0.6220
15.8 |
2.8740
73 |
2.2340
57 |
1.2992
33 |
0.0197
0.5 |
13 |
0.8858
22.525 |
1700 |
|
POSB10 |
5/8 |
5/8¡Á18 |
1.4960
38 |
0.5906
15 |
0.8268
21 |
0.7598
19.3 |
3.4055
86.5 |
2.6674
67.5 |
1.5748
40 |
0.0197
0.5 |
13 |
1.1220
28.5 |
2550 |
|
POSB12 |
3/4 |
3/4¡Á16 |
1.8110
46 |
0.7086
18 |
0.9843
25 |
0.9409
23.8 |
4.0551
103 |
3.1496
80 |
1.8503
47 |
0.0197
0.5 |
13 |
1.3582
34.5 |
3500 |
|
POSB14 |
7/8 |
7/8¡Á14 |
2.0472
52 |
0.7847
20 |
1.1024
28 |
1.0157
25.8 |
4.4094
112 |
3.3858
86 |
2.0078
51 |
0.0197
0.5 |
13 |
1.5000
38.10 |
4200 |
|
POSB16 |
1 |
1¡Á12 |
2.3622
60 |
0.8661
22 |
1.2204
31 |
1.1732
29.8 |
4.9606
126 |
3.7795
96 |
2.2440
57 |
0.0197
0.5 |
13 |
1.6929
43 |
5500 |
1. If the L-screw, bearing type and thread needed to be marked "L" and "left." For example: POSB6L M3/8¡Á24gL
2. Outside the sliding surface inlaid with bronze liner
3. Rod end surface galvanized or plated color, there are holes or oil lubrication Cup
