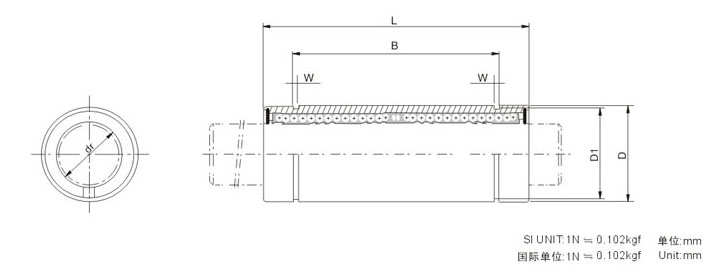

Model No	Ball circuit	weight(gf)	Inscribed clecle diameter		Outer diameter		Length		B		W	D1	Eccentricity (max) µm	Radial clearance tolerance	Basicload rating
			dr	Tolerance	D	Tolerance	L	Tolerance		Tolerance					CN	CoN
LME8LUU	4	31	8	+0.009 -0.001	16	0 -0.009	45	0 -0.3	33	0 -0.3	1.1	15.2	15	15	431	784
LME12LUU	4	80	12		22	0 -0.011	57		45.8		1.3	21			657	1200
LME16LUU	5	145	16	+0.011 -0.001	26		70		49.8		1.3	24.9			1230	2350
LME20LUU	5	180	20		32	0 -0.013	80		61		1.6	30.5	17	20	1400	2750
LME25LUU	6	440	25	+0.013 -0.002	40		112	0 -0.4	82	0 -0.4	1.85	38			1560	3140
LME30LUU	6	580	30		47		123		104.2		1.85	44.5			2490	5490
LME40LUU	6	1170	40	+0.016 -0.004	62	0 -0.015	154		121.2		2.15	59	20	25	3430	8040
LME50LUU	6	3100	50		75		192		155.2		2.65	72			6080	15900
LME60LUU	6	3500	60		90	0 -0.020	211		170		3.15	86.5	25		7650	200000
