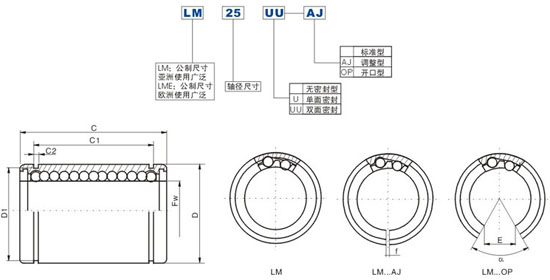

 Product Name:LMUU Product parameters:
|
Designation |
Major dimensions and tolerance |
|
LM…UU |
Ball circuit |
weight(gf) |
LM...AJ
|
LM...OP
|
Fw(mm) |
Tolerance (μm) |
|
Precision J |
Precision P |
|
LM4UU |
4 |
1.9 |
----- |
----- |
4 |
0
-5 |
0
-8 |
|
LM5UU |
4 |
4 |
----- |
----- |
5 |
|
LM6UU |
4 |
7.6 |
LM6-AJ |
----- |
6 |
0
-6 |
0
-9 |
|
LM8SUU |
4 |
10.4 |
LM8S-AJ |
----- |
8 |
|
LM8UU |
4 |
15 |
LM8-AJ |
----- |
8 |
|
LM10UU |
4 |
29.5 |
LM10-AJ |
LM10-OP |
10 |
|
LM12UU |
4 |
31.5 |
LM12-AJ |
LM12-OP |
12 |
|
LM13UU |
4 |
43 |
LM13-AJ |
LM13-OP |
13 |
|
LM16UU |
5 |
69 |
LM16-AJ |
LM16-OP |
16 |
|
LM20UU |
5 |
87 |
LM20-AJ |
LM20-OP |
20 |
0
-7 |
0
-10 |
|
LM25UU |
6 |
220 |
LM25-AJ |
LM25-OP |
25 |
|
LM30UU |
6 |
250 |
LM30-AJ |
LM30-OP |
30 |
|
LM35UU |
6 |
390 |
LM35-AJ |
LM35-OP |
35 |
0
-8
|
0
-12
|
|
LM40UU |
6 |
585 |
LM40-AJ |
LM40-OP |
40 |
|
LM50UU |
6 |
1580 |
LM50-AJ |
LM50-OP |
50 |
0
-9 |
0
-15 |
|
LM60UU |
6 |
1860 |
LM60-AJ |
LM60-OP |
60 |
|
LM80UU |
6 |
4420 |
LM80-AJ |
LM80-OP |
80 |
|
|
|
Major dimensions and tolerance |
Basic load rating |
Old desingation
|
|
D
(mm) |
Tloerance (µm) |
C
(mm) |
Tloerance (µm) |
C1 (mm) |
Tloerance (µm) |
C2
(mm) |
D1
(mm) |
F
(mm) |
E
(mm) |
α |
Dynamic CN |
Static
CoN |
|
8 |
0
-9 |
12 |
0
-120 |
---- |
---- |
---- |
---- |
---- |
---- |
---- |
68 |
127 |
LB4UU |
|
10 |
15 |
10.2 |
0
-200 |
1.1 |
9.6 |
---- |
---- |
---- |
167 |
206 |
LB5UU |
|
12 |
0
-11
|
19 |
0
-200 |
13.5 |
1.1 |
11.5 |
1 |
---- |
---- |
206 |
265 |
LB6UU |
|
15 |
17 |
11.5 |
1.1 |
14.3 |
1 |
---- |
---- |
176 |
216 |
LB8SUU |
|
15 |
24 |
17.5 |
1.1 |
14.3 |
1 |
---- |
---- |
274 |
392 |
LB8UU |
|
19 |
0
-13 |
29 |
22 |
1.3 |
18 |
1 |
6.8 |
80° |
372 |
549 |
LB10UU |
|
21 |
30 |
23 |
1.3 |
20 |
1.5 |
8 |
80° |
510 |
784 |
LB12UU |
|
23 |
32 |
23 |
1.3 |
22 |
1.5 |
9 |
80° |
510 |
784 |
LB13UU |
|
28 |
37 |
26.5 |
1.6 |
27 |
1.5 |
11 |
80° |
774 |
1180 |
LB16UU |
|
32 |
0
-16 |
42 |
30.5 |
1.6 |
30.5 |
1.5 |
11 |
60° |
882 |
1370 |
LB20UU |
|
40 |
59 |
0
-300 |
41 |
0
-300
|
1.85 |
38 |
2 |
12 |
50° |
980 |
1570 |
LB25UU |
|
45 |
64 |
44.5 |
1.85 |
43 |
2.5 |
15 |
50° |
1570 |
2740 |
LB30UU |
|
52 |
0
-19 |
70 |
49.5 |
2.1 |
49 |
2.5 |
17 |
50° |
1670 |
3140 |
LB35UU |
|
60 |
80 |
60.5 |
2.1 |
57 |
3 |
20 |
50v |
2160 |
4020 |
LB40UU |
|
80 |
100 |
74 |
2.6 |
76.5 |
3 |
25 |
50° |
3820 |
7940 |
LB50UU |
|
90 |
0
-22 |
110 |
85 |
3.15 |
86.5 |
3 |
30 |
50° |
4700 |
10000 |
LB60UU |
|
120 |
140 |
0
-400 |
105.5 |
0
-400 |
4.15 |
116 |
3 |
40 |
50° |
7350 |
16000 |
LB80UU |
|
|
|
|
|
